Differentiator Op-Amps Explained: Concepts and Applications

Have you ever wondered how to measure how quickly a signal changes? That’s exactly what a differentiator does. Using an op-amp, this clever circuit turns rapid voltage changes into sharp spikes.

Whether it’s sharpening signals, detecting edges, or solving calculus problems in hardware, the differentiator is a powerful and often overlooked tool in electronics.

What Is Differentiation?

Before diving into circuits, let’s start with the basic idea: Differentiation in mathematics measures how quickly something changes.

In electronics, differentiation means measuring how fast a voltage signal changes over time.

Think about a square wave — a signal that suddenly jumps from low to high. A differentiator circuit produces spikes whenever the signal suddenly jumps, highlighting the “moments of change.”

Ideal Differentiator Op-Amp Configuration

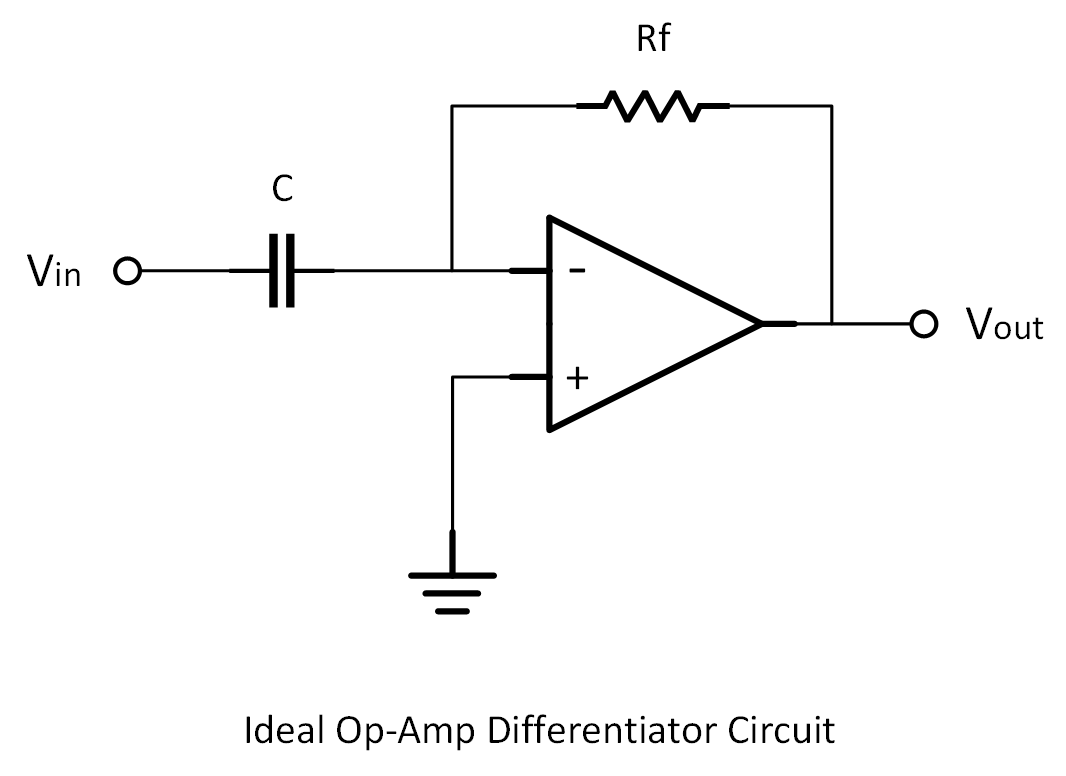

The ideal differentiator uses a simple configuration:

• A capacitor C is placed at the input.
• A resistor Rf is placed in the feedback loop.

The key equation governing the output voltage is:

This means the output is proportional to the rate of change of the input signal.

• If the input rises quickly, the output will be a large negative spike.
• If the input falls quickly, the output will be a large positive spike.

Many electronics hobbyists use general-purpose op-amps like the TL081 or LM741 to experiment with ideal differentiator circuits, though more modern options like Texas Instruments’ OPA2134 offer better noise performance.

Moving on, let’s take a look at how a differentiator reacts to different input signals based on how quickly the voltage changes.

Sine Wave Input → Cosine Wave Output

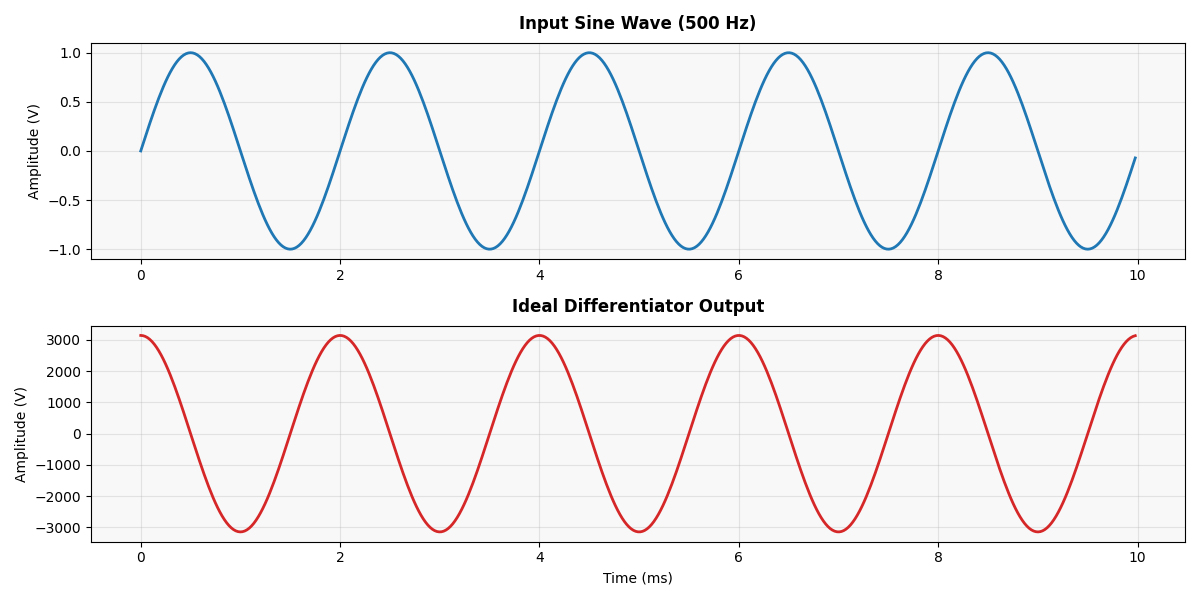

When a 500 Hz sine wave is fed into the differentiator, the output should theoretically be a 500 Hz cosine wave—a differentiated version of the input, phase-shifted by 90° and scaled by the circuit’s gain.

Square Wave Input → Spikes at Transitions

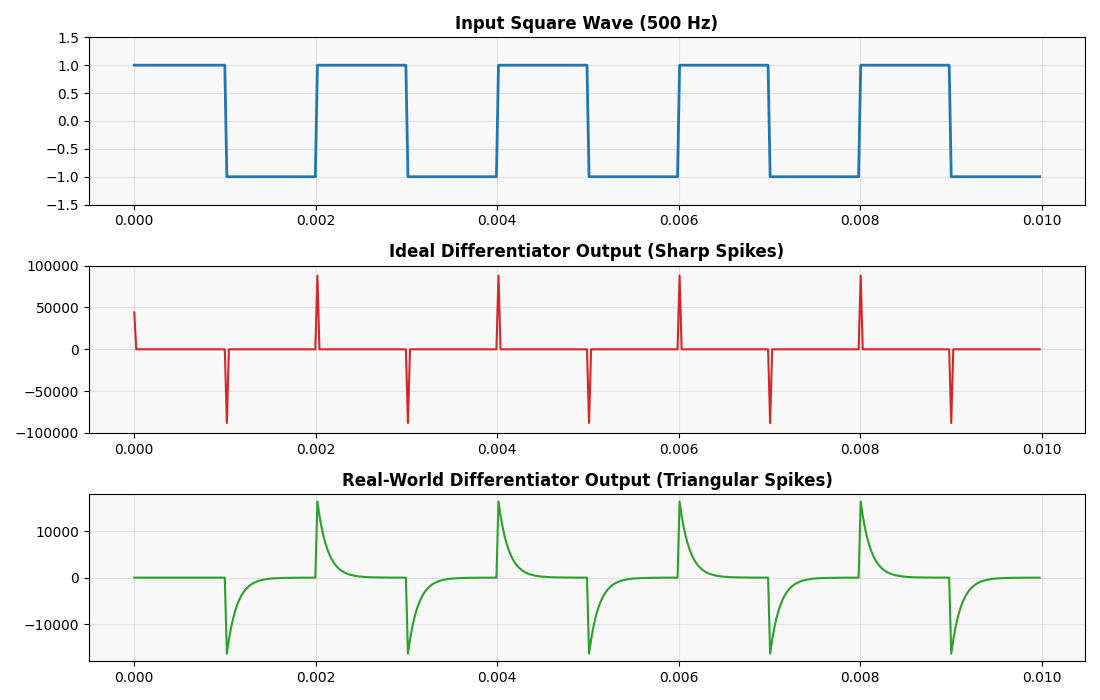

Now, feeding a square wave into the differentiator produces narrow, sharp spikes at the edges. A rising edge produces a negative spike, and a falling edge produces a positive one.

Why? Because the derivative of a sudden step (instantaneous voltage change) is a very large spike. The differentiator “reacts” only at the edges where the signal changes.

Ramp Input → Constant Output

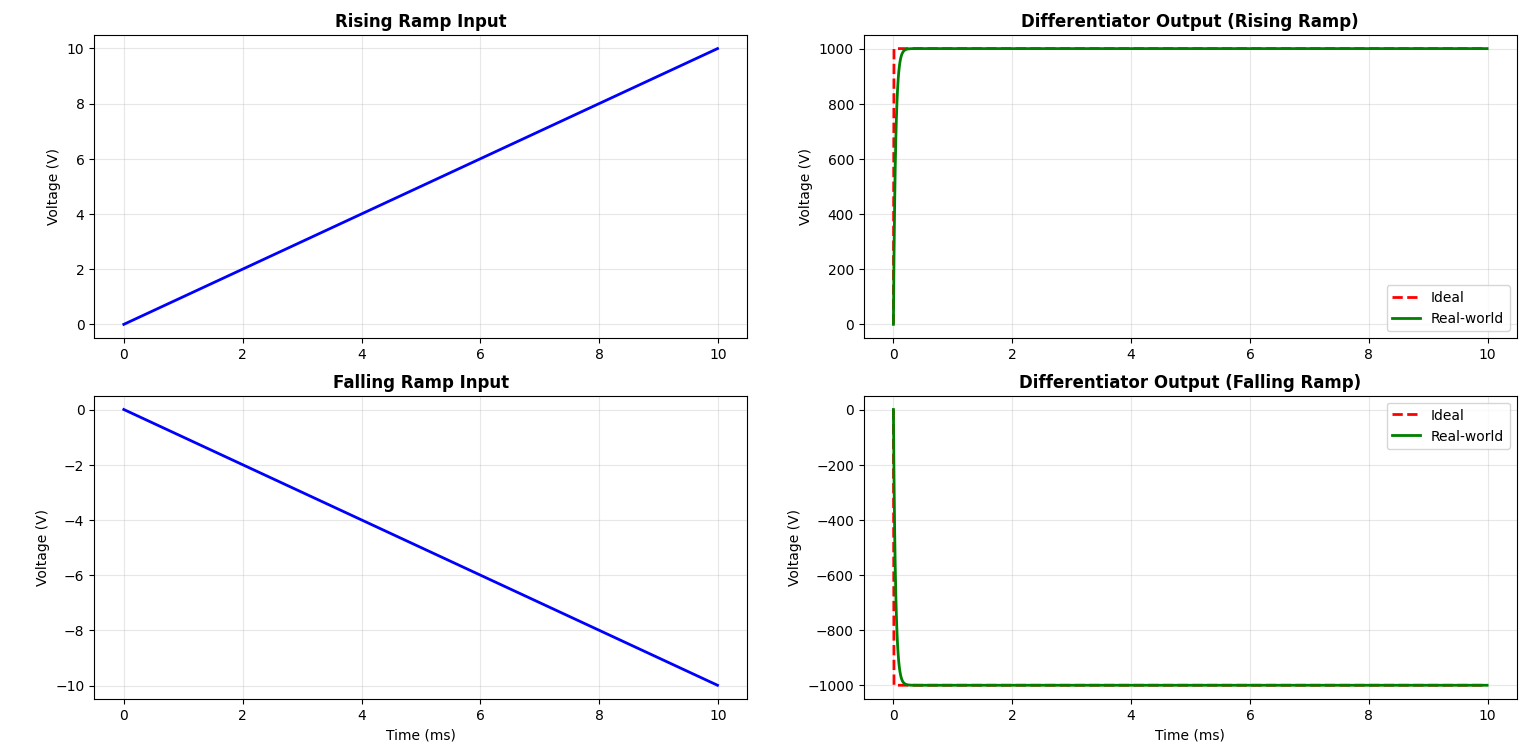

A ramp signal rises at a steady, constant rate (like a straight diagonal line). Since the slope is constant, we expect the differentiator to output a constant voltage.

Positive constant if ramp is rising and negative constant if ramp is falling. In simple words, you should see a flat, steady output that matches the slope of the ramp.

Triangle Wave Input → Square Wave Output

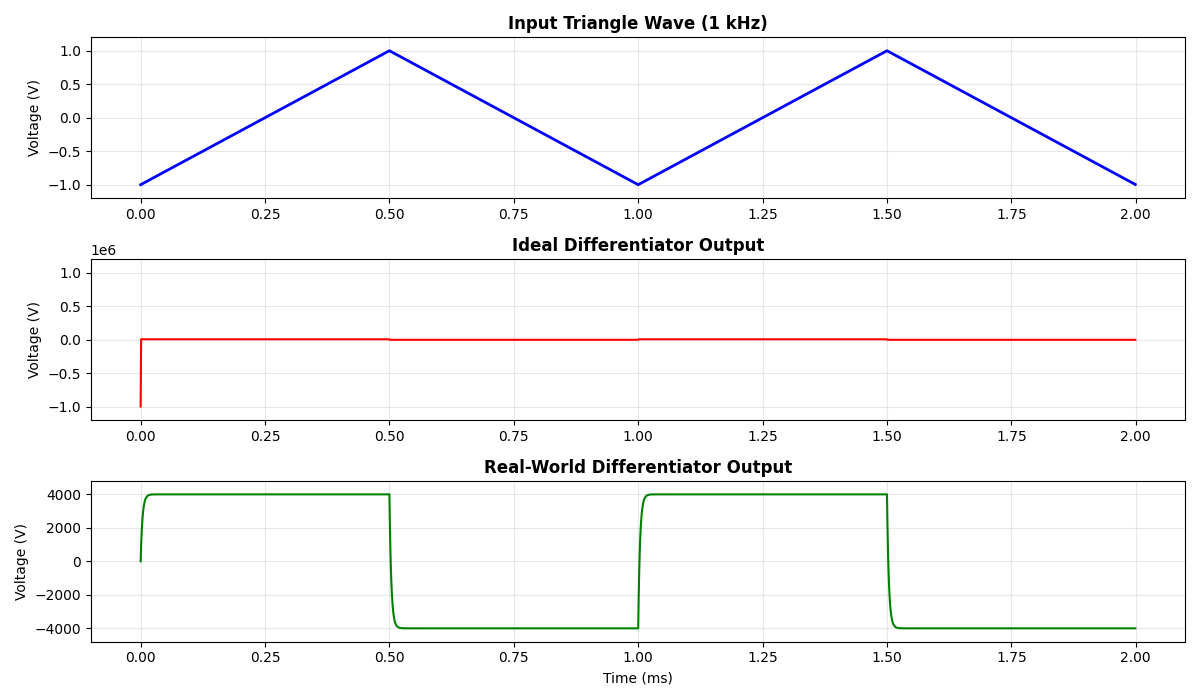

A triangle wave rises and falls linearly, meaning constant positive and negative slopes. We expect the differentiator to output a constant positive voltage when the input is rising, and a constant negative voltage when the input is falling, or in other words, a square wave output.

Applications of Differentiator Circuits

Differentiators are found across many industries and systems:

Application	Purpose of Differentiator
Edge Detectors	Detect rising/falling edges
Pulse Shaping	Restore sharpness in pulses
High-Pass Filtering	Remove slow trends, pass fast changes
Motion/Acceleration Detection	Find velocity or acceleration
Analog Computers	Solve differential equations
Seismic/Vibration Monitoring	Detect sudden shifts
Oscillator Circuits	Generate complex waveforms
Noise/Spike Detection	Identify signal anomalies

Recommended readings

• Explore Signal Analysis: Understanding Frequency, Amplitude, and Phase.
• The Basics of Analog-to-Digital Conversion (ADC).

Real-World Challenges of Building Differentiators

While the theoretical concept is simple, real differentiator circuits come with some hurdles. Let’s unpack them.

1. Noise Sensitivity

Mathematically, a differentiator boosts high frequencies, and noise is often high frequency. That means a pure differentiator can turn tiny noise into huge output spikes.

2. Practical Differentiator Design

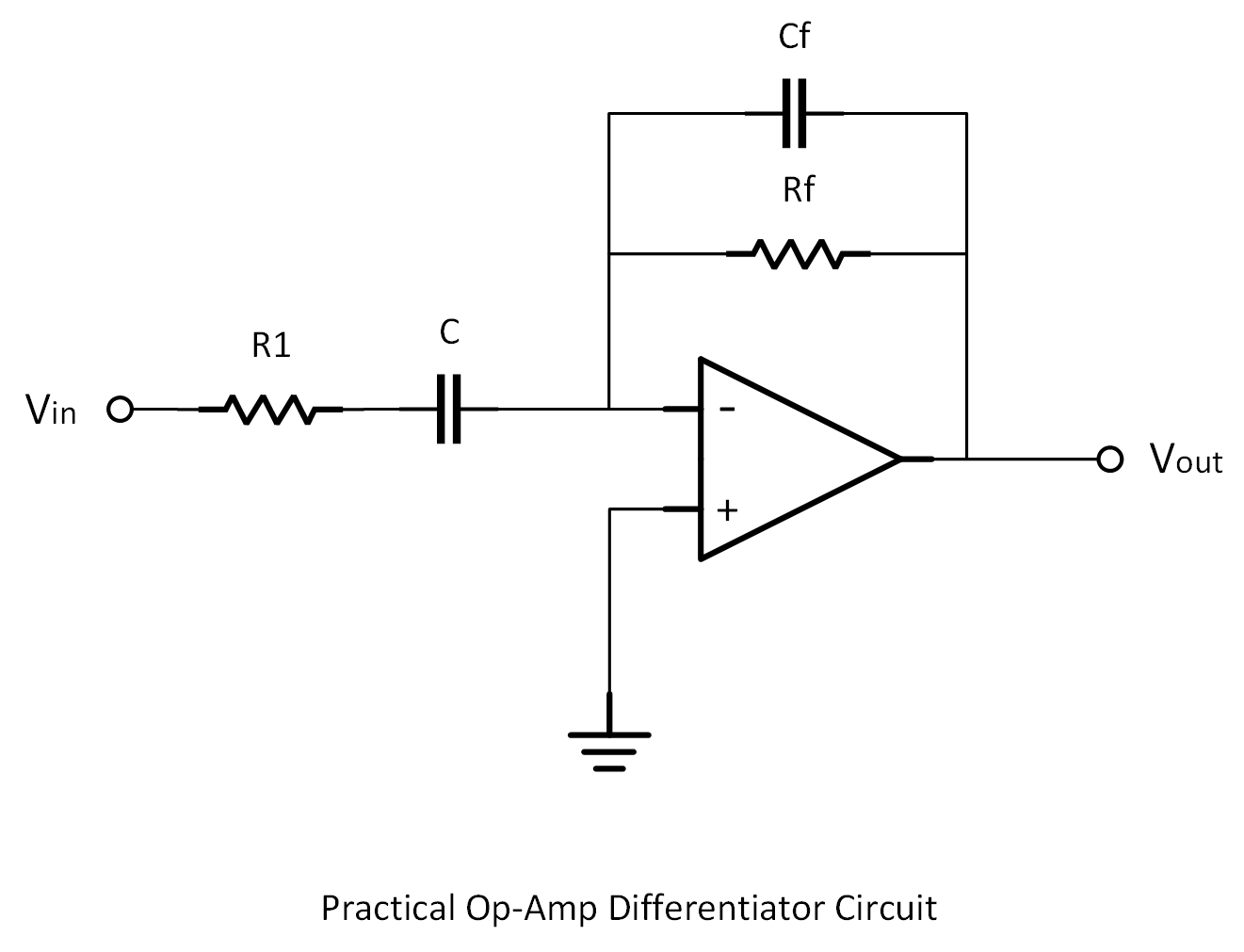

To prevent noise overload, we make two key changes:

• Add a series resistor R1 at the input
• Place a small capacitor Cf across the feedback resistor

These changes act like a built-in low-pass filter, taming high-frequency gain and making the circuit more stable and usable.

Many designers use Murata ceramic capacitors and Vishay precision resistors for tight tolerance and stable behavior in sensitive analog designs. You might want to consider these things.

3. Op-Amp Bandwidth Limits

No op-amp has infinite bandwidth. At high frequencies, the gain drops off. That’s why it’s important to choose op-amps with high gain-bandwidth products, like Analog Devices’ ADA4898 for high-speed performance or TL072 for budget-friendly designs.

4. Slew Rate Limitations

Op-amps can’t respond instantly to fast changes. Even with a fast square wave at the input, you may see a rounded spike at the output — this is the slew rate limit in action. Choose op-amps with higher slew rates if you’re working with fast signals.

See also

• Explore How a Diode Works in a Circuit.
• What is a Non-Inverting Operational Amplifier (Op-amp) Circuit.

5. Stability Issues

If a differentiator is allowed to amplify very high frequencies without control, the circuit can easily become unstable. Unwanted oscillations or ringing (persistent high-frequency noise) might appear, making the output useless.

Now, we can avoid this by intentionally limiting the high-frequency gain (again using small capacitors and resistors) to stabilize the circuit, even though it slightly compromises the ideal behavior.

6. Power Supply Quality

Noisy or unstable power can inject unwanted signals into your circuit. That’s why regulated power supplies like the Rigol DP832 or Mean Well switching supplies are favored in lab and bench setups. Don’t forget to add bypass capacitors (e.g., 100nF + 10μF) near the op-amp’s power pins.

Differentiator vs Integrator Op-Amps

In analog electronics, differentiators and integrators are two important op-amp circuits that perform fundamental operations based on calculus. These two circuits are like opposites — one highlights change, the other accumulates change over time.

Differentiator	Integrator
Measures rate of change	Measures accumulated value
Emphasizes fast changes	Emphasizes slow, cumulative effects
Acts like a high-pass filter	Acts like a low-pass filter

Fun Projects Using Differentiators

• Guitar Pedal Effects

Edge detection circuits using differentiators can trigger audio effects when a sharp pick or strum is detected. Combine with op-amps like JRC4558D (famous in overdrive pedals) to experiment with sound shaping.

• Analog Tachometer

Using a pulse sensor and a differentiator circuit, you can convert position signals (e.g., from rotary encoders) into speed information.

• Earthquake Detector

By combining a vibration sensor with a differentiator, you can build a simple earthquake alarm. Modules like the SW-420 vibration sensor pair well with op-amps like the LM358 for detecting sudden changes.
